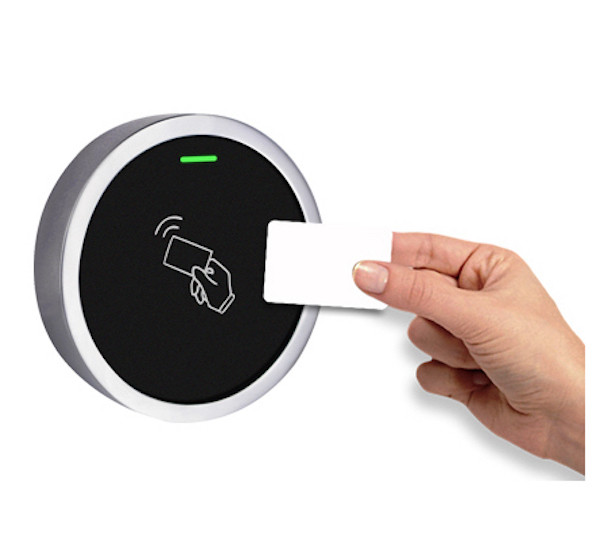

Access controller with built-in BLE module for control and programming via smartphone application or WEB-cabinet

We recommend this controller for hotels, hostels, enterprises, offices, commercial premises ... wherever it is necessary to organise controlled access control with the possibility of logging all events.
In use with ETHERNET gateway - it is possible to create multi point access control systems working with a common user base without laying communication lines and installing a server with software.
The controller is made in a IP66 weatherproof hermetic case

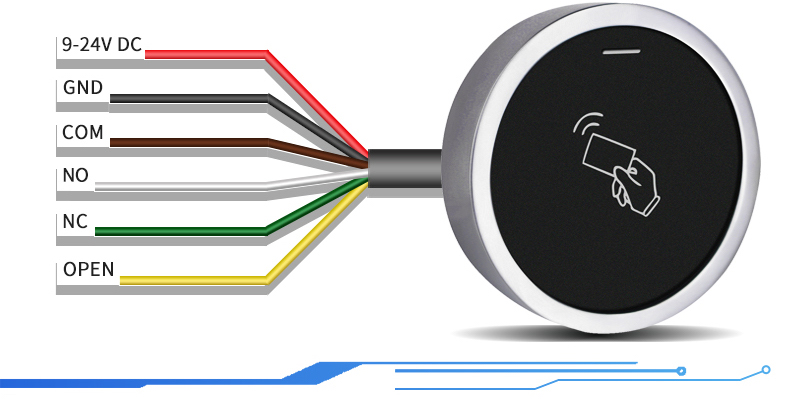

The controller need external 9-24V power supply and one relay output with NO/NC contacts with a switching current of 12V 2A.


The relay closure duration can be programmed via TTLOCK application on your smartphone within the range of 1-990 sec,
also you can activate the "FREEWAY" mode by schedule or by command from the administrator's smartphone.

TYPE:                                     Access control keypad

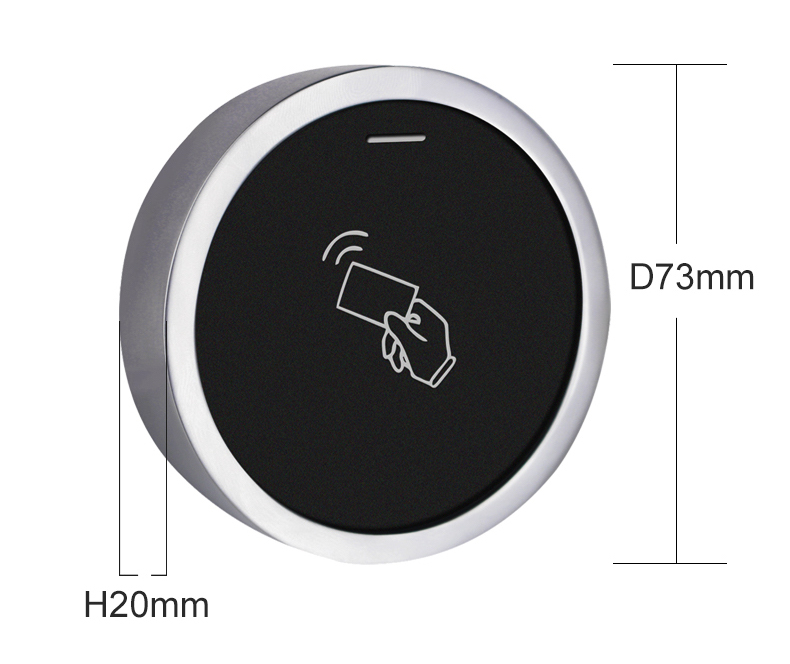

NAME                                    S-BOX MINI
UNLOCK WAYS                     Card, BLE Remote control, APP WiFi ( need GATE ), APP Bluetooth

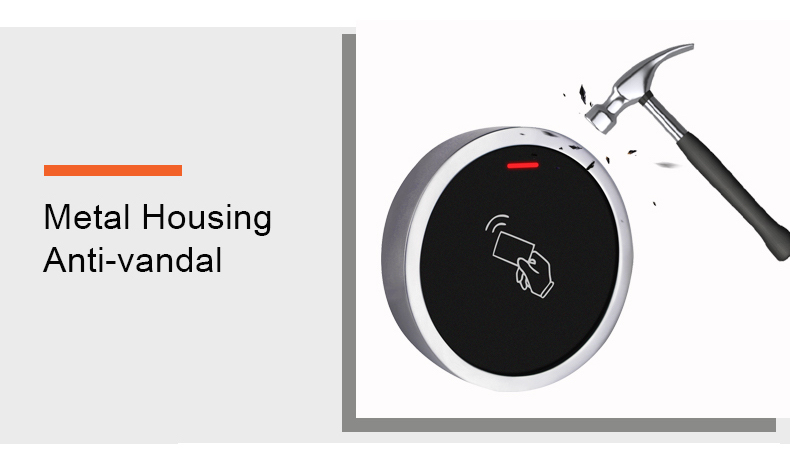

MATERIAL MADE                  Aluminium Alloy / acryl

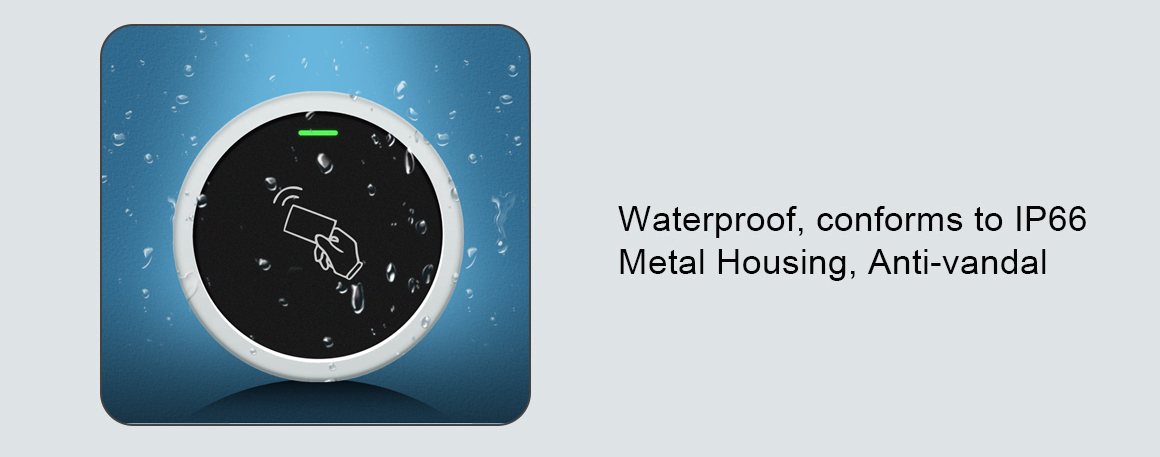

PROTECTION LEVEL              IP 66; Indoor / outdoor
USER CAPACITY                    IC CARD ( MF 13.56Mhz ) - 1000; REMOTE CONTROL - 16; eKey- no limit
OPERATING                          CURRENT 2A
WORKING TEMP                  -20℃~60℃
POWER                                12V, 80mA (external source

🔑 Belangrijkste functies van de TTLock S-BOX MINI

1. Toegangscontrole via meerdere methoden

• RFID-kaart (13.56MHz Mifare)
• Bluetooth (BLE)
• TTLock smartphone-app
• WiFi (via optionele G2 Gateway)

2. Programmeerbare relaisuitgang

• NO/NC contacten
• Instelbare schakeltijd van 1 tot 990 seconden via de TTLock-app

3. Free Passage Mode

• Tijdschema instelbaar voor vrije doorgang
• Handmatig te activeren via app of automatisch via planning

• Tot 1000 RFID-kaarten
• 16 afstandsbedieningen
• Onbeperkt aantal eKeys via app

5. Weerbestendig ontwerp (IP66)

• Geschikt voor binnen en buiten
• Aluminium behuizing met acryl front
• Temperatuurbereik: -20°C tot +60°C

6. Voeding en installatie

• Externe voeding: 12V DC, 80mA
• Eén relaisuitgang voor aansturing van sloten
• Aanbevolen extra regen-/zonkap bij buitenmontage

7. Beheer via app of webinterface

• TTLock-app voor iOS en Android
• Web-cabinet voor beheer op afstand (met gateway)
